Amiga CD³² |
|
|
| ||||||||||
|

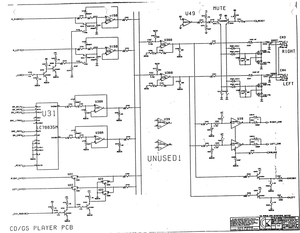

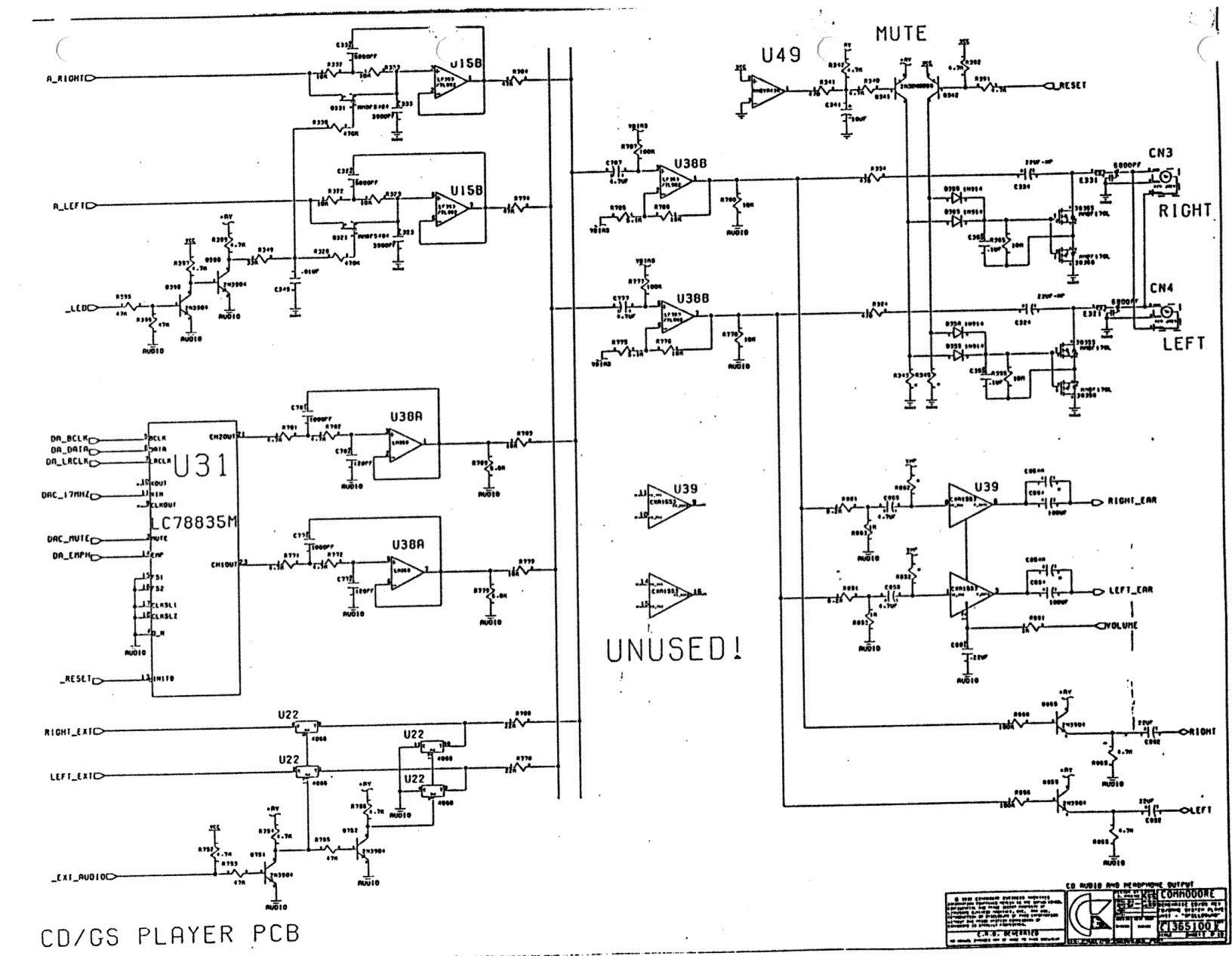

| Schaltplan - Audiomixer |
|
|

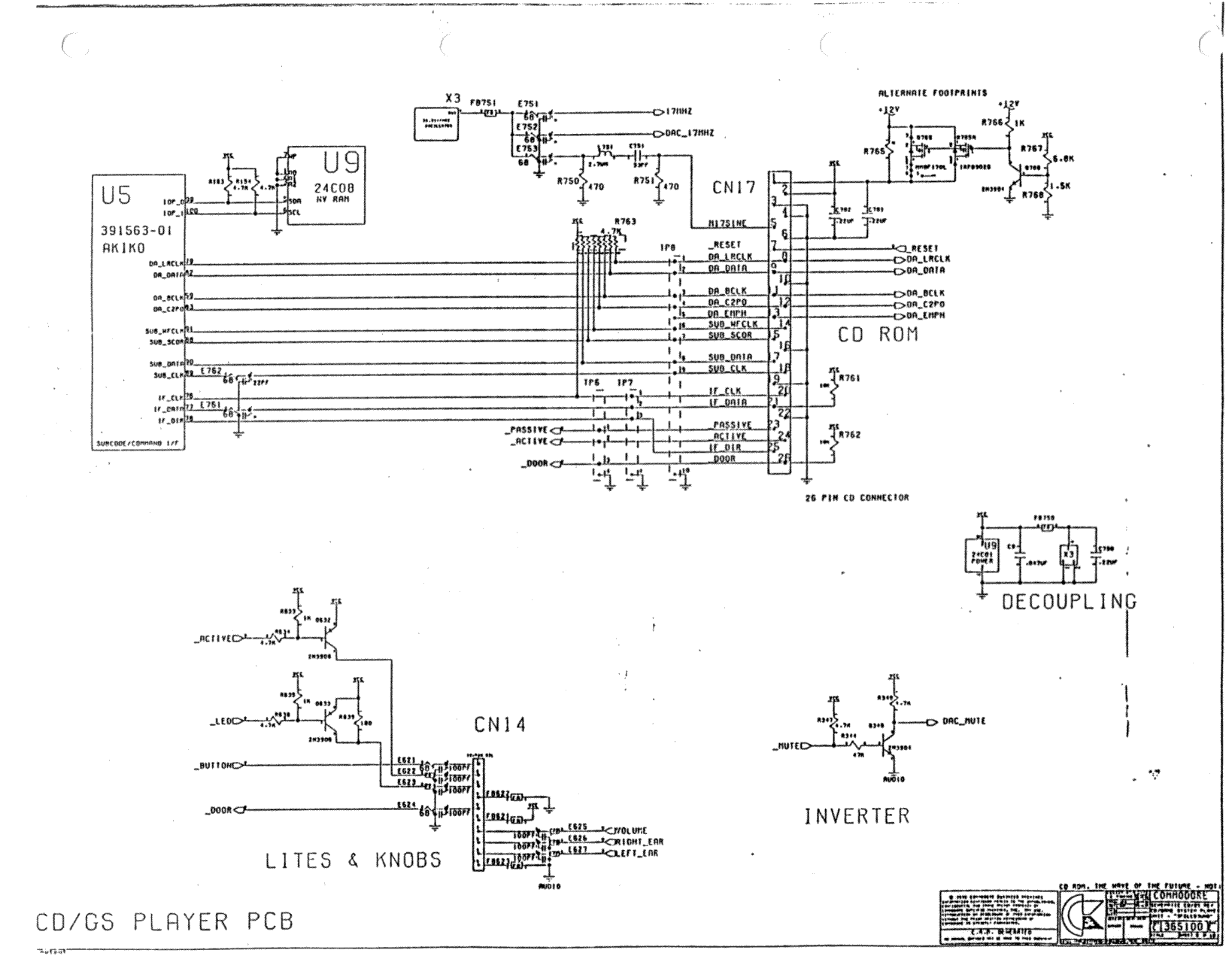

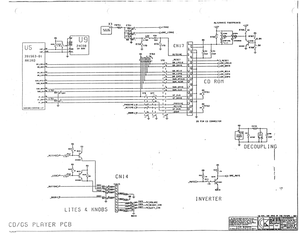

| Schaltplan - CDRom Connector |
|
|

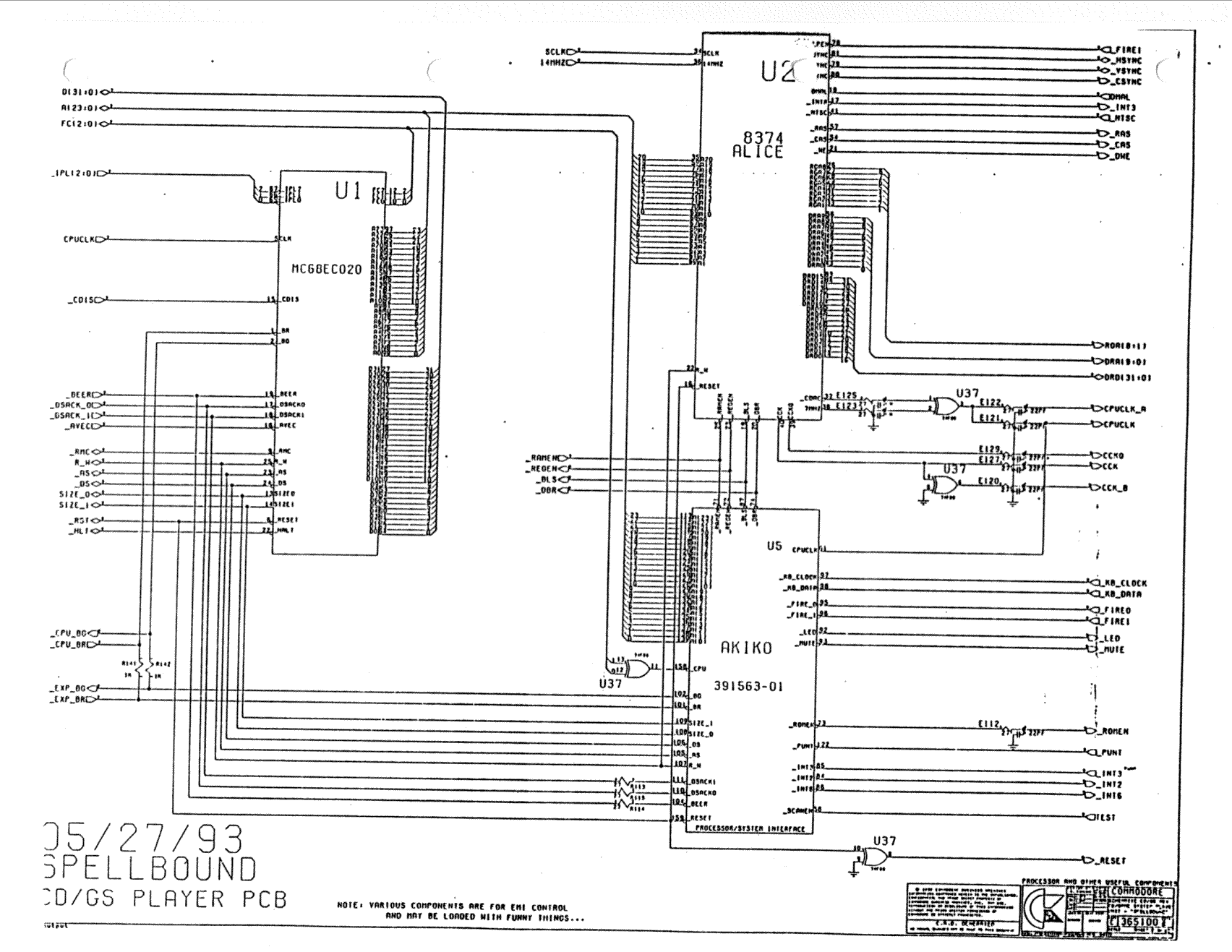

| Schaltplan - CPU |
|
|

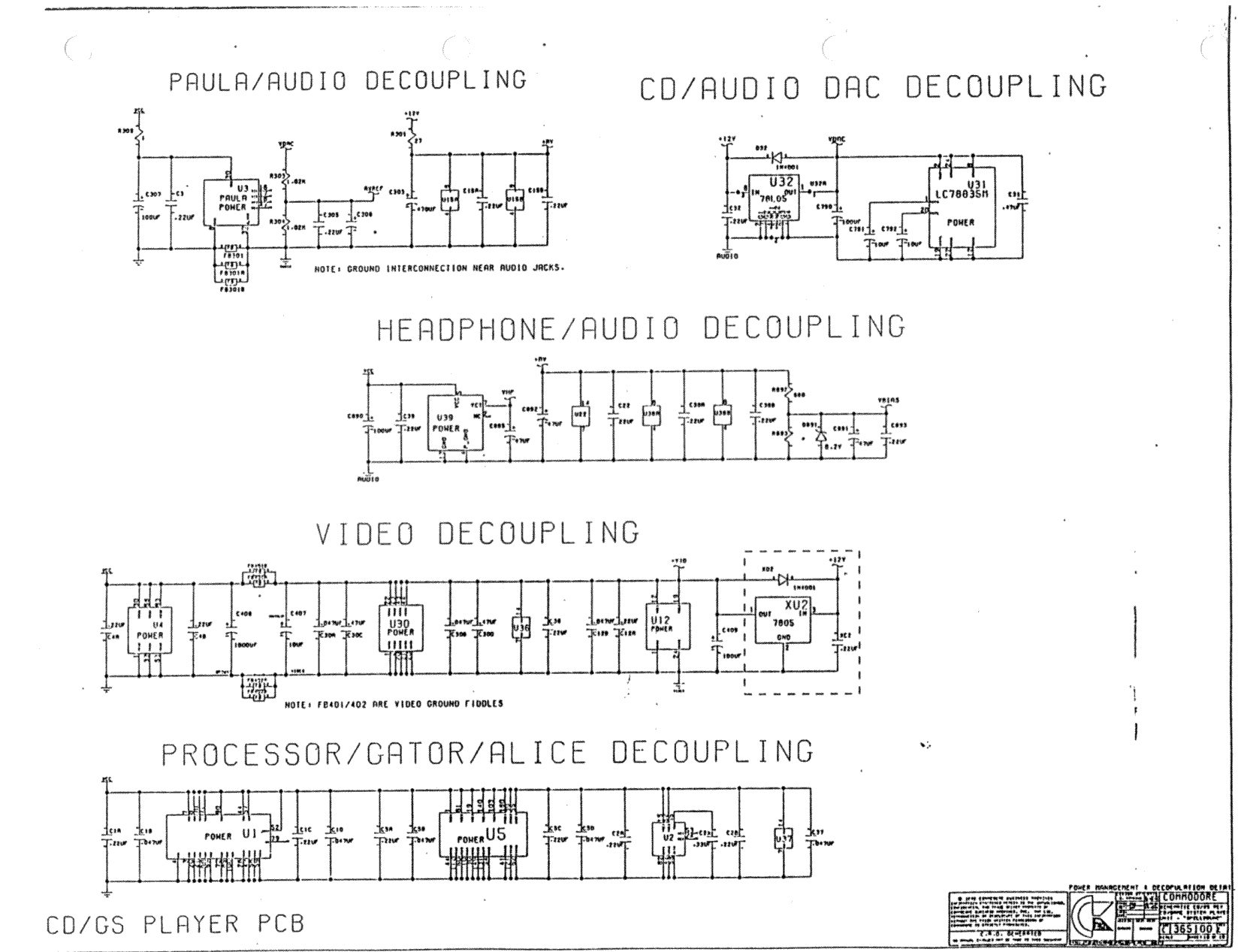

| Schaltplan - Decoupling |
|
|

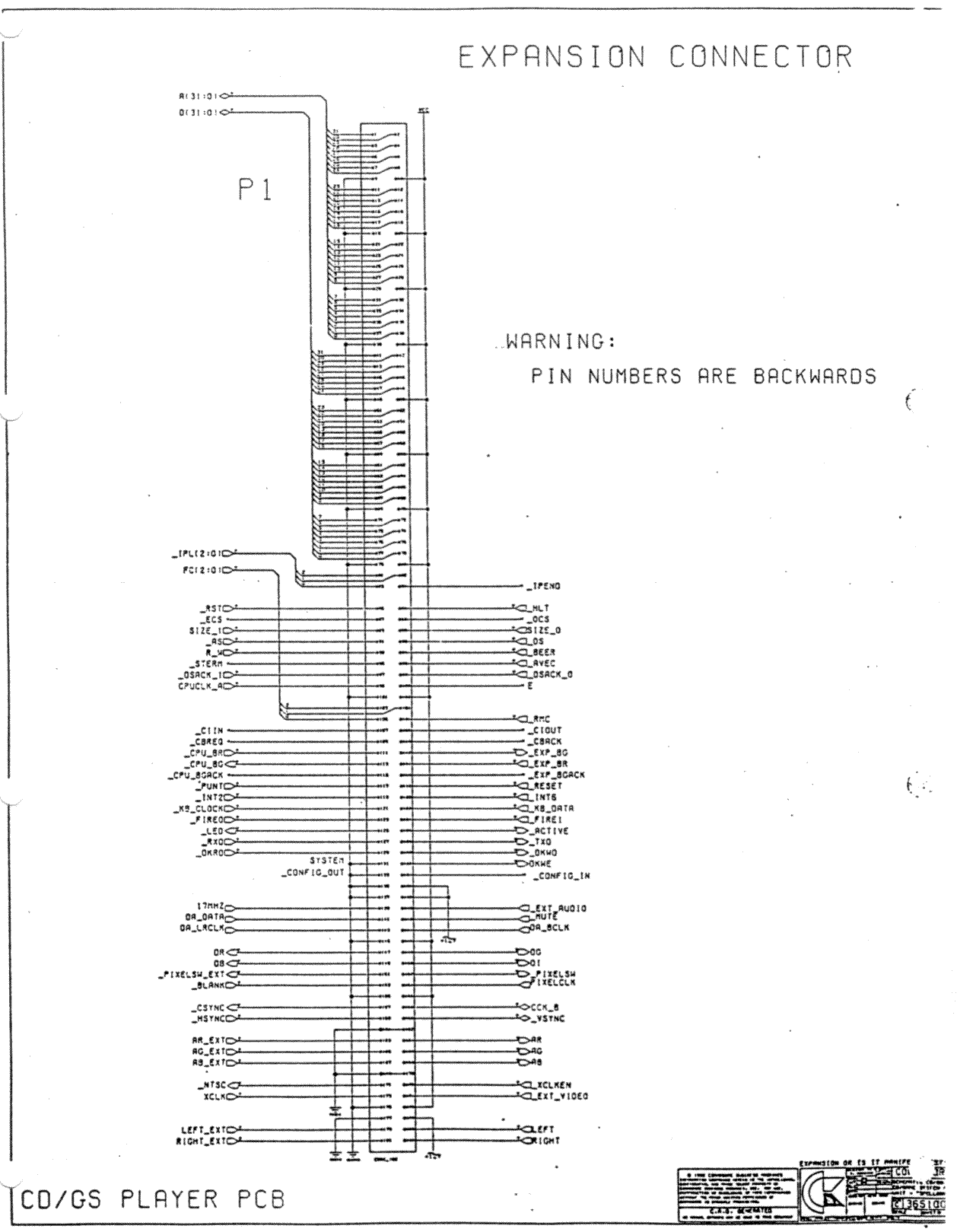

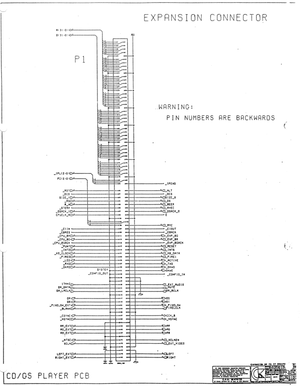

| Schaltplan - Expansion Connector |
|
|

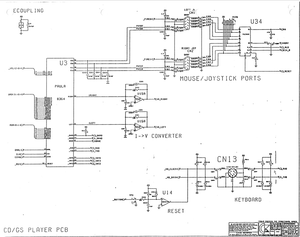

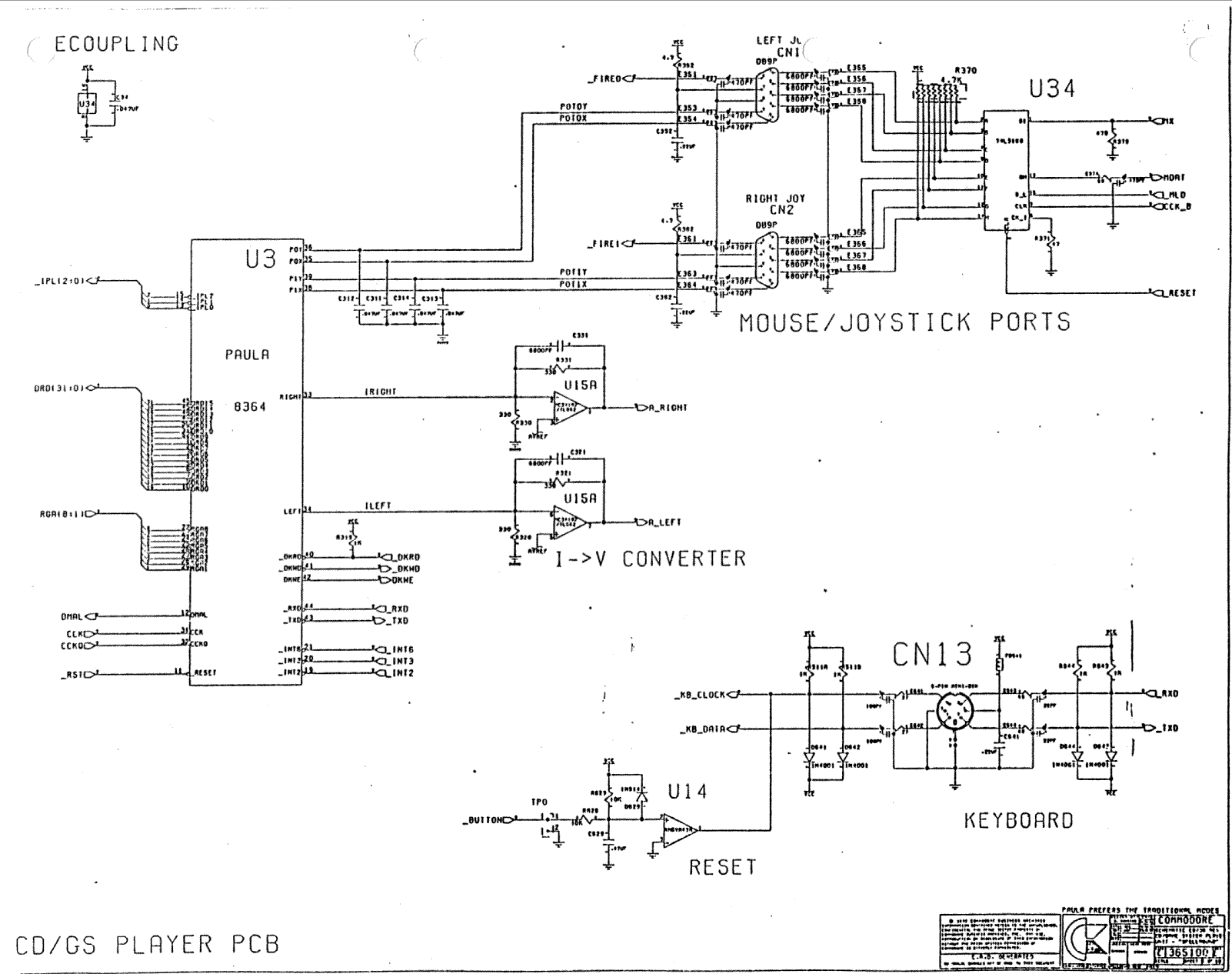

| Schaltplan - Joystick, Tastatur und Paula |
|
|

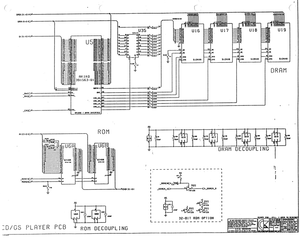

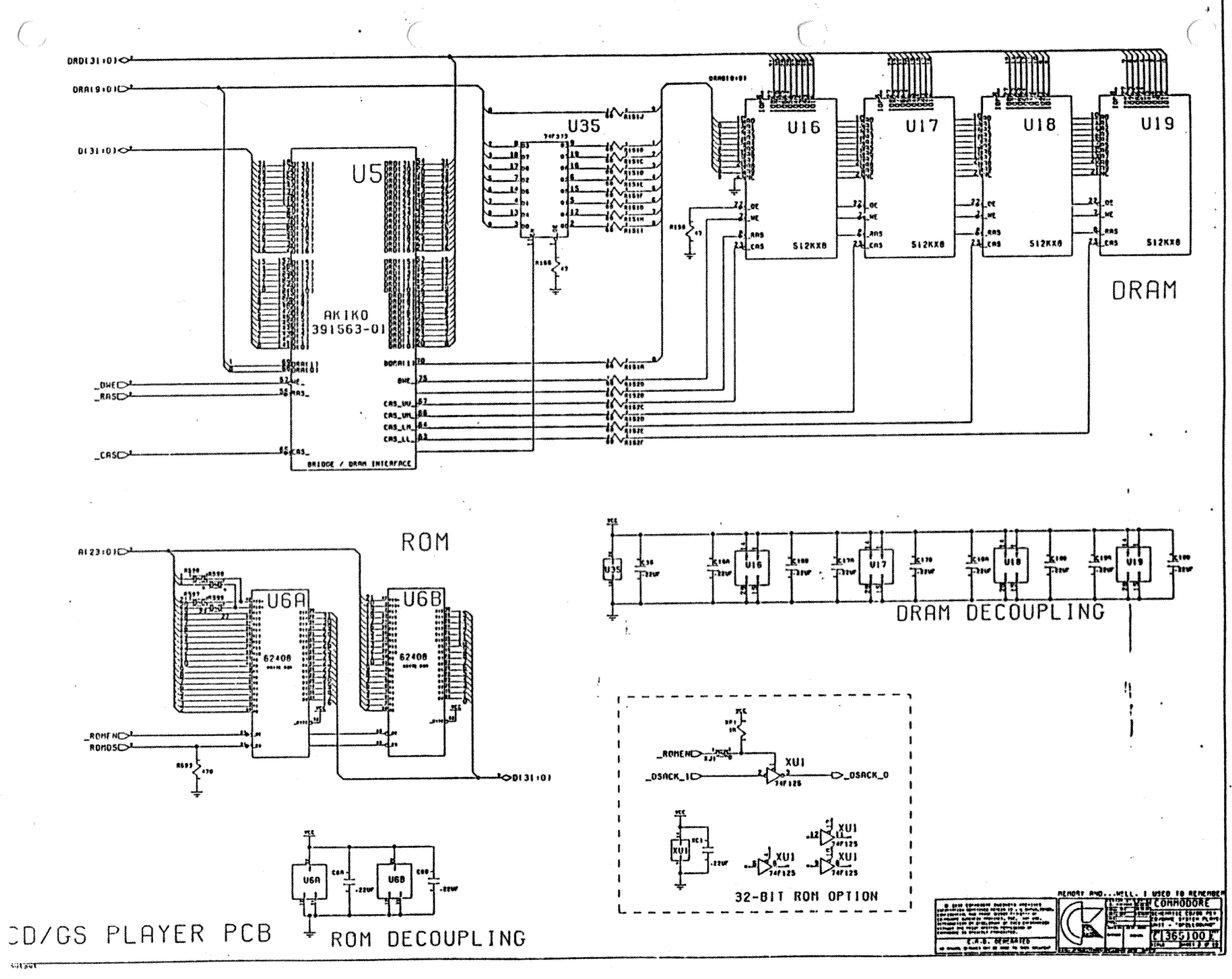

| Schaltplan - ROMs, RAM und Akiko |
|
|

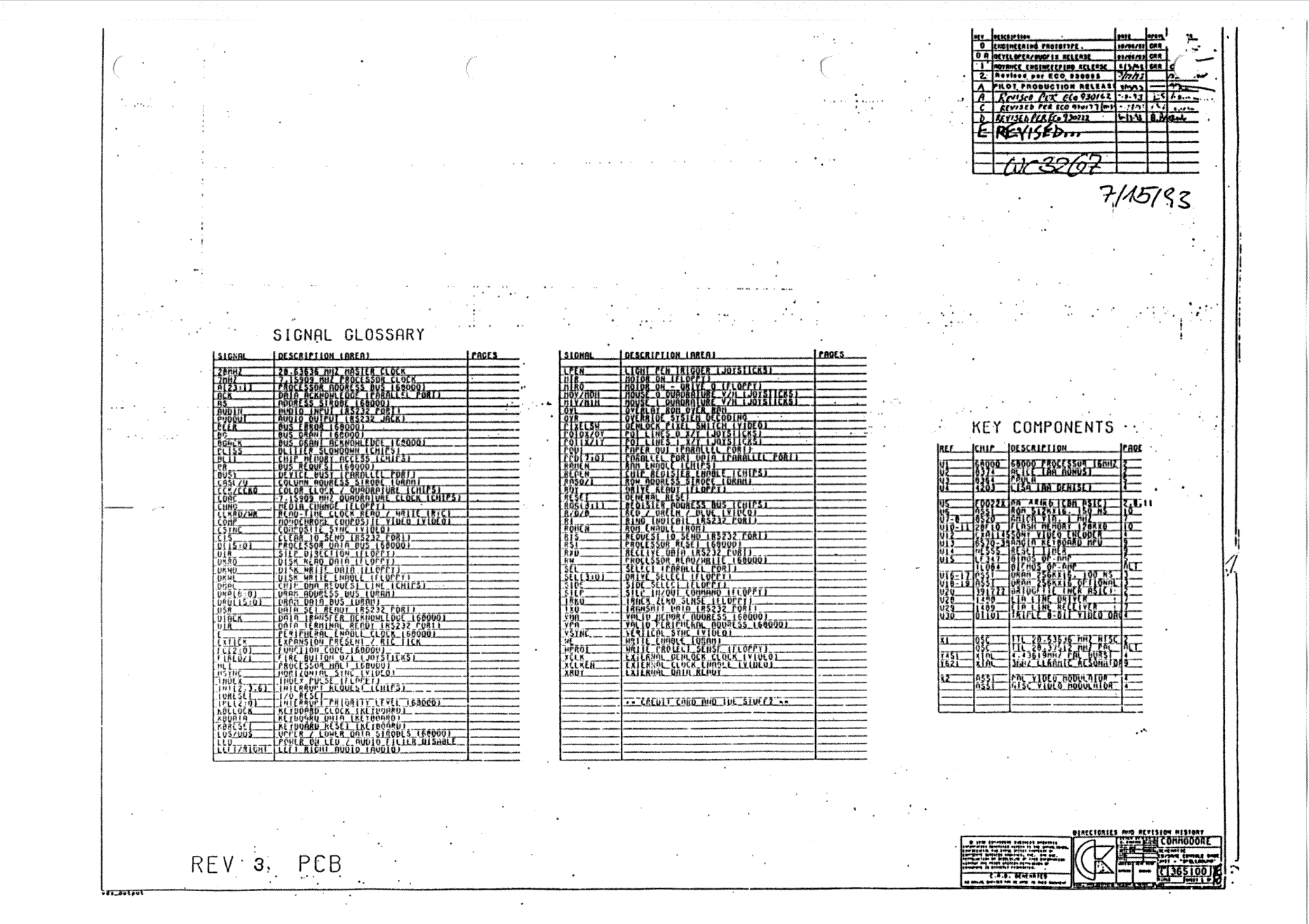

| Schaltplan - Signal Glossary |
|
|

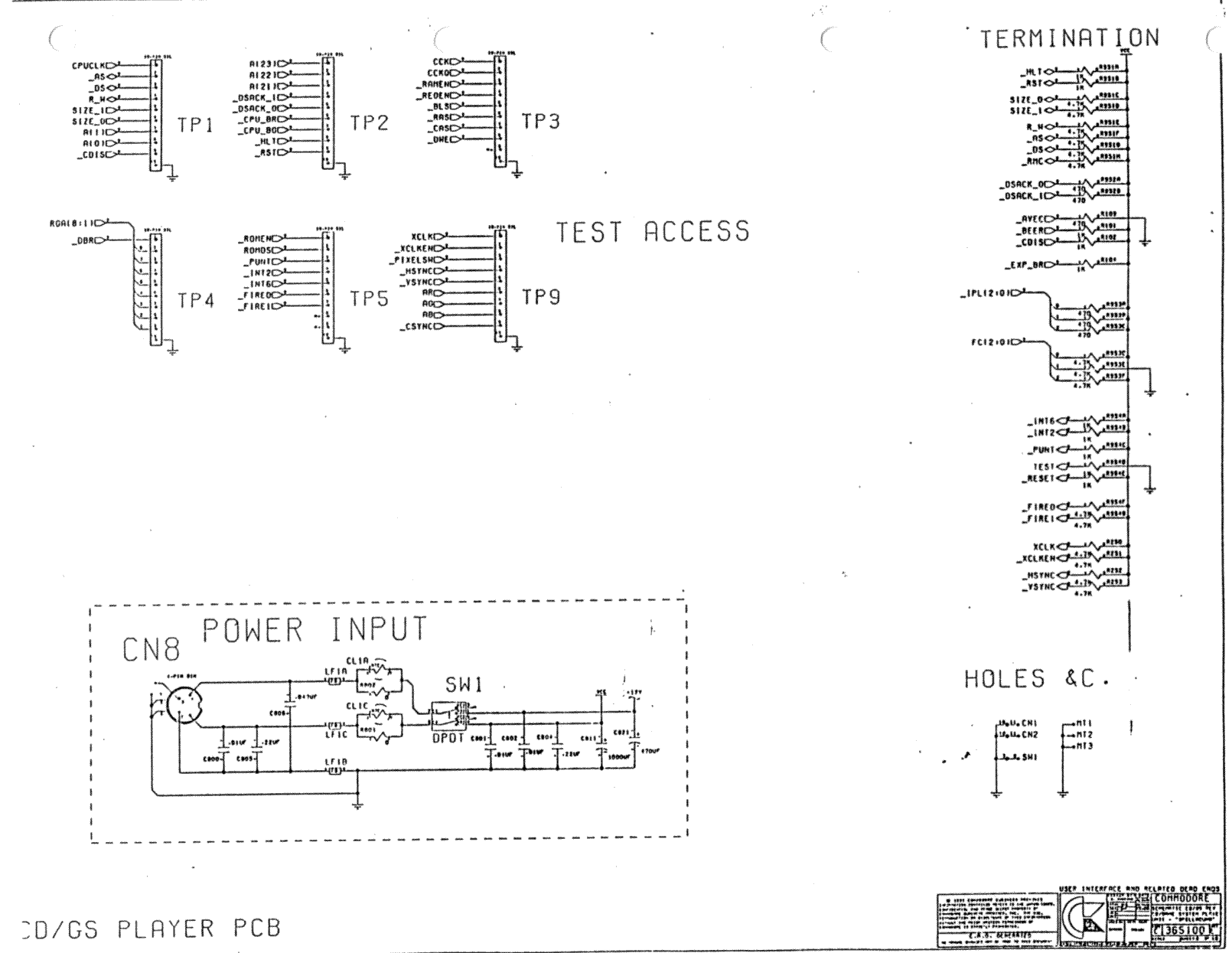

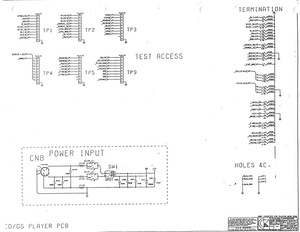

| Schaltplan - Testpoints und Power |
|
|

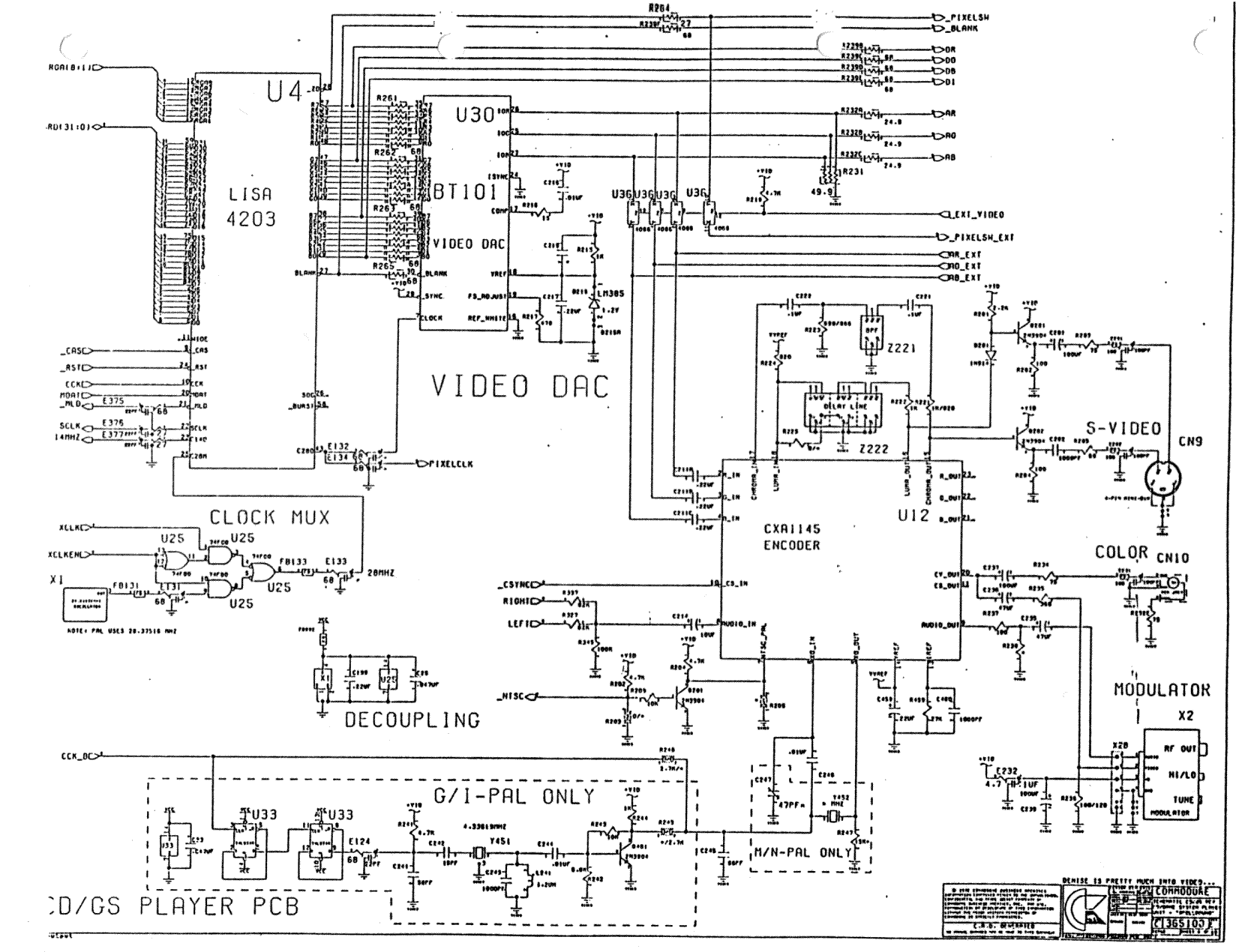

| Schaltplan - Video |
|
| CD32 Service Manual | Komplettes CD32 Service Manual inkl. Schaltpläne in besserer Auflösung |
|
